Imaging | Lens Mount | Canon EF-M |
|---|
| Resolution | Actual: 34.4 Megapixel
Effective: 32.5 Megapixel (6960 x 4640) |
|---|
| Sensor Type | 22.3 x 14.9 mm (APS-C) CMOS |
|---|
| Crop Factor | 1.6x |
|---|
| Stabilization | Digital (Video Only) |
|---|
| ND Filter | None |
|---|
| Capture Type | Stills & Video |
|---|
Exposure Control | Shutter Type | Mechanical Focal Plane Shutter, Electronic Shutter |
|---|
| Shutter | Mechanical Shutter
1/4000 to 30 Seconds
Electronic Shutter
1/16000 to 30 Seconds |
|---|
| Bulb | Bulb Mode |
|---|
| ISO | Photo
100 to 25,600 in Auto Mode (Extended: 100 to 51,200)
Video
100 to 12,800 (Extended: 100 to 25,600) |
|---|
| Metering Method | Center-Weighted Average, Evaluative, Partial, Spot |
|---|
| Exposure Modes | Aperture Priority, Manual, Program, Shutter Priority |
|---|
| Exposure Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) |
|---|
| Metering Range | -2 to 20 EV |
|---|
| White Balance | Presets: Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten |
|---|
| Continuous Shooting | Up to 14 fps at 32.5 MP for up to 23 Frames (Raw) / 54 Frames (JPEG)
Up to 30 fps at 18 MP |
|---|
| Interval Recording | + |
|---|
| Self-Timer | 2/10-Second Delay |
|---|
Image | Image Sizes | 3:2 Raw
6960 x 4640
3:2 JPEG
6960 x 4640
4800 x 3200
3472 x 2320
2400 x 1600
16:9 JPEG
6960 x 3904
4800 x 2688
3472 x 1952
2400 x 1344
4:3 JPEG
6160 x 4640
4256 x 3200
3072 x 2320
2112 x 1600
1:1 JPEG
4640 x 4640
3200 x 3200
2320 x 2320
1600 x 1600 |
|---|
| Aspect Ratio | 1:1, 3:2, 4:3, 16:9 |
|---|
| Format | JPEG, Raw |
|---|
| Depth | 14-Bit |
|---|
Internal Video | Recording Modes | H.264/MP4
UHD 4K (3840 x 2160) at 25p/29.97p
Full HD (1920 x 1080) at 25p/29.97p/50p/59.94p/100p/119.88p
HD (1280 x 720) at 50p/59.94p |
|---|
| Rec Limit | Up to 29 Minutes, 59 Seconds |
|---|
| Video System | NTSC/PAL |
|---|
| Microphone | Stereo |
|---|
| Audio Recording | AAC LC Audio |
|---|
External Video Capture | External Recording | 4:2:2 8-Bit via HDMI
UHD 4K (3840 x 2160) up to 25p/29.97p |
|---|
| IP Streaming | None |
|---|
Interface | Media | Single Slot: SD/SDHC/SDXC (UHS-II) |
|---|
| Video | 1 x Micro-HDMI Output |
|---|
| Audio | 1 x 1/8" / 3.5 mm TRS Stereo Microphone Input |
|---|
| Other | 1 x USB Type-C (USB 2.0) Data Input/Output
1 x Canon E3 (2.5 mm Sub-Mini) Input |
|---|
| Power | None |
|---|
| Wireless | Bluetooth, Wi-Fi |
|---|
| GPS | None |
|---|
Monitor | Size | 3.0" |
|---|
| Resolution | 1,040,000 Dot |
|---|

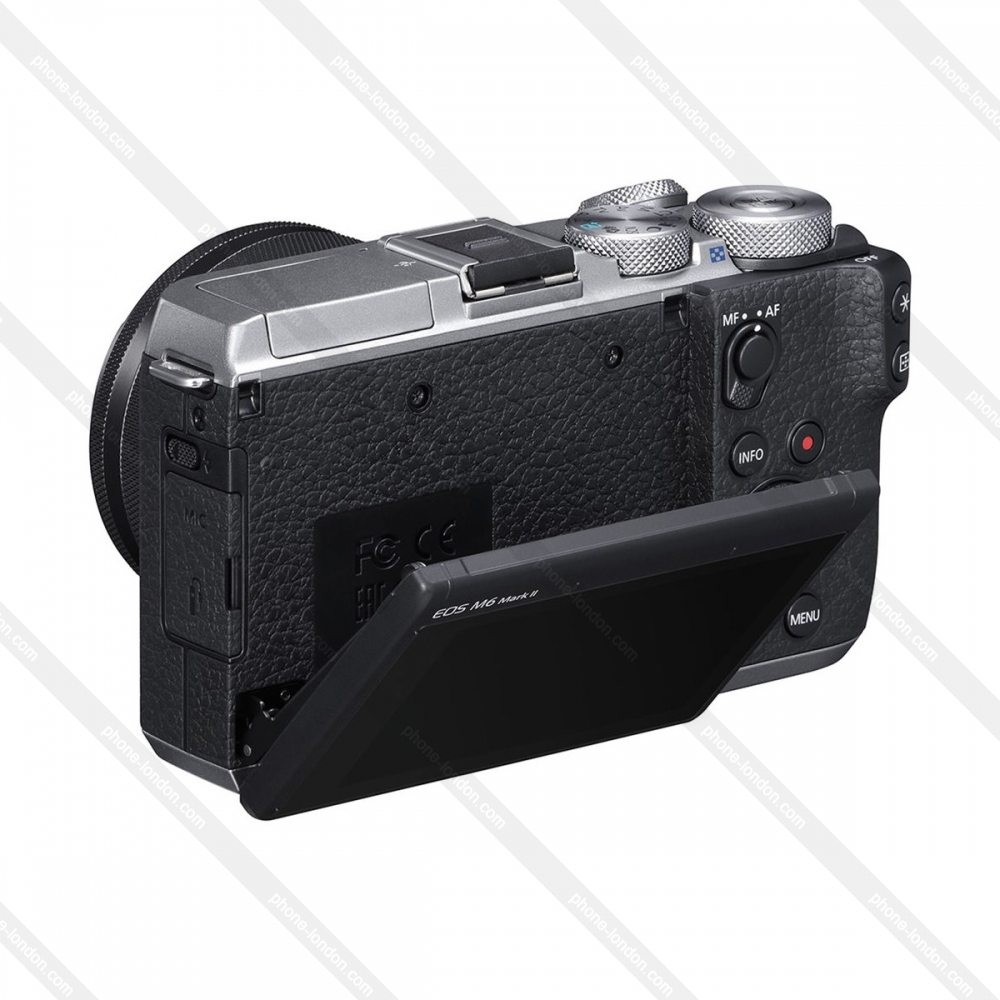

| Display | 180° Tilting Touchscreen LCD |
|---|
Focus | Type | Auto and Manual Focus |
|---|
| Mode | Continuous-Servo AF, Manual Focus, Single-Servo AF |
|---|
| Autofocus Points | Phase Detection: 5481 |
|---|
| Autofocus Sensitivity | -5 to +18 EV |
|---|
Flash | Built-In | + |
|---|
| Modes | Auto, Red-Eye Reduction |
|---|
| Guide Number | 15.09' / 4.6 m at ISO 100 |
|---|
| Max. Sync Speed | 1/200 Second |
|---|
| Compensation | -2 to +2 EV (1/3 EV Steps) |
|---|
| System | eTTL |
|---|
| External Connection | Hot Shoe |
|---|
General | Battery | 1 x LP-E17 Rechargeable Lithium-Ion, 7.2 VDC, 1040 mAh (Approx. 305 Shots) |
|---|
| Tripod Mounting | 1 x 1/4"-20 Female (Bottom) |
|---|
| Accessory Mount | 1 x Hot Shoe Mount |
|---|
| Construction | Magnesium Alloy, Polycarbonate |
|---|
| WxHxD | 4.71 x 2.76 x 1.94" / 119.6 x 70 x 49.2 mm |
|---|
| Weight | 14.39 oz / 408 g |
|---|
Packaging | Weight | 1.77 lb / 0.8 kg |
|---|
| Box LxWxH | 6.7 x 6.65 x 5.35" |
|---|
|
