Image | Lens Mount | Micro Four Thirds |
|---|
| Resolution | Actual: 21.8 Megapixel
Effective: 20.4 Megapixel |
|---|
| Sensor | 17.4 x 13 mm (Four Thirds) MOS |
|---|
| Crop Factor | 2x |
|---|
| Stabilisation | Sensor-Shift, 5-Axis |
|---|
| ND Filter | 4 Stop Electronic ND Filter |
|---|
| Capture Type | Stills & Video |
|---|
Exposure | Shutter Type | Mechanical Focal Plane Shutter and Electronic Rolling Shutter |
|---|
| Bulb/Time Mode | Bulb Mode, Time Mode |
|---|
| ISO Sensitivity Range | 200 to 25,600 (Extended: 64 to 25,600) |
|---|
| Metering | Center-Weighted Average, Multi-Zone, Spot |
|---|
| Exposure | Aperture Priority, Auto, Manual, Program, Shutter Priority |
|---|
| Compensation | -5 to +5 EV (1/3, 1/2, 1 EV Steps) |
|---|
| Metering Range | -2 to 20 EV |
|---|
| WB | Presets: Auto, Colour Temperature, Custom |
|---|
| Interval Recording | Yes |
|---|
Still Photography | Aspect Ratio | 1:1, 3:2, 4:3, 16:9 |
|---|
| Format | JPEG, Raw |
|---|
| Bit Depth | 12-Bit |
|---|
Video | External Recording | HDMI
4096 x 2160
3840 x 2160
1920 x 1080p |
|---|
| Fast, Slow Motion | Yes |
|---|
| Broadcast Output | NTSC/PAL |
|---|
| Built-In Microphone | Stereo |
|---|
Connectivity | Media | Single Slot: SD/SDHC (UHS-II) |
|---|
| Video | 1x Micro-HDMI (Unspecified Signal) Output |
|---|
| Audio | 1x 1/8" / 3.5 mm TRS Stereo Microphone Input |
|---|
| Power | 1x Micro-USB Input/Output |
|---|
| Other | 1x 2.5 mm Sub-Mini Control |
|---|
| Wireless | Wi-Fi (802.11b/g)
Bluetooth 4.2 |
|---|
| Satnav (GPS, GLONASS, etc.) | GPS
*Via Connected Smartphone |
|---|
Screen | Screen Size | 3" |
|---|
| Resolution | 1,040,000 Dot |
|---|
| Screen Type | Articulating Touchscreen LCD |
|---|
Viewfinder | Type | Built-In Electronic (OLED) |
|---|
| Resolution | 2,360,000 Dot |
|---|
| Eye Point | 27 mm |
|---|
| Coverage | 100% |
|---|
| Diopter Adjustment | -4 to +2 |
|---|
Focus | Focusing | Auto and Manual Focus |
|---|
| Focus Modes | Continuous-Servo AF, Manual Focus, Single-Servo AF |
|---|
| AF Points | Contrast Detection, Phase Detection: 121 (121 Cross-Type) |
|---|
Flash | Max. Sync Speed | 1/250 Second |
|---|
| Flash Compensation | -3 to +3 EV (1/3, 1 EV Steps) |
|---|
| Dedicated Flash System | TTL |
|---|
| External Connection | Shoe Mount |
|---|
Environmental | Operating Temperature | 14 to 104°F / -10 to 40°C |
|---|
| Storage Temperature | -4 to 140°F / -20 to 60°C |
|---|
| Operating Humidity | 30 to 90% |
|---|
| Storage Humidity | 10 to 90% |
|---|
General Information | Battery Type | 1x BLS-50 Rechargeable Lithium-Ion (Approx. 310 Shots) |
|---|
| Shoe Mount | 1x Hot Shoe |
|---|
| Tripod Mounting Thread | 1x 1/4"-20 Female (Bottom) |
|---|
| WxHxD | 4.9 x 3.4 x 2" / 125.3 x 85.2 x 49.7 mm |
|---|
| Weight | 12.9 oz / 366 g (Body Only)
14.6 oz / 414 g (With Battery) |
|---|
Package Information | Package | 2.295 lb / 1.04 kg |
|---|
| Box Dimensions | 8.5 x 7.4 x 5.5" / 21.28 x 18.53 x 13.77 cm |
|---|

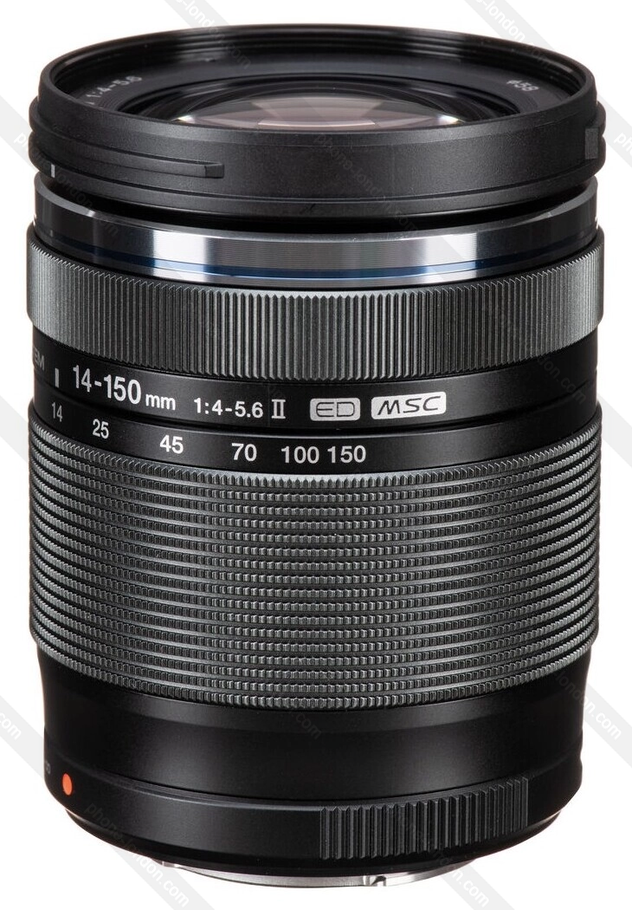

Lens Specifications | Max Aperture | f/4 to 5.6 |
|---|
| Min Aperture | f/22 |
|---|
| Lens Mount | Micro Four Thirds |
|---|
| Lens Format Coverage | Micro Four Thirds |
|---|
| Angle of View | 75° to 8.2° |
|---|
| Min. Focus Distance | 1.64 / 50 cm |
|---|
| Max. Magnification | 0.22x |
|---|
| Optical | 15 Elements in 11 Groups |
|---|
| Diaphragm Blades | 7, Rounded |
|---|
| Focus Type | Autofocus |
|---|
| Filter Size | 58 mm (Front) |
|---|
| Dimensions (ø x L) | 2.5 x 3.3" / 63.5 x 83.8 mm |
|---|
| Length at Max. Extension | 5.6" / 142.24 mm |
|---|
| Weight | 10 oz / 284 g |
|---|
Packaging Info | Package | 1.055 lb / 0.48 kg |
|---|
| Box Dimensions (LxWxH) | 7.2 x 5 x 4.5" / 18.03 x 12.52 x 11.27 cm |
|---|
|
