Image | Lens Mount | Micro Four Thirds |
|---|
| Resolution | Actual: 26.52 Megapixel
Effective: 25.2 Megapixel (5776 x 4336) |
|---|
| Sensor | 17.3 x 13 mm (Four Thirds) BSI CMOS |
|---|
| Sensor Crop (35mm Equivalent) | Crop Factor: 2x
*Additional Crop Occurs in Select Video Modes |
|---|
| Stabilisation | Sensor-Shift, 5-Axis |
|---|
| Capture Type | Stills & Video |
|---|
Exposure | Shutter Type | Mechanical Focal Plane Shutter and Electronic Rolling Shutter |
|---|
| Bulb/Time Mode | Bulb Mode (Up to 30 Minutes) |
|---|
| Metering | Center-Weighted Average, Highlight Weighted, Multiple, Spot |
|---|
| Exposure | Aperture Priority, Auto, Manual, Program, Shutter Priority |
|---|
| Compensation | -5 to +5 EV (1/3 EV Steps) |
|---|
| Metering Range | 0 to 18 EV |
|---|
| Burst | Up to 75 fps at Max. Resolution for up to 215 Frames (Raw) / 260 Frames (JPEG) |
|---|
| Self Timer | 2/3/10-Second Delay |
|---|
Still Photography | Aspect Ratio | 1:1, 3:2, 4:3, 16:9 |
|---|
| Format | JPEG, Raw |
|---|
Video | Fast, Slow Motion | Yes |
|---|
| Gamma Curve | Panasonic V-Gamut, Panasonic V-Log |
|---|
| Built-In Microphone | Stereo |
|---|
| Audio | MOV: 2-Channel 24-Bit 48 kHz LPCM Audio
MP4: 2-Channel 16-Bit 48 kHz AAC Audio |
|---|
Connectivity | Video | 1x HDMI Output |
|---|
| Audio | 1x 1/8" / 3.5 mm TRS Stereo Microphone Input
1x 1/8" / 3.5 mm TRS Stereo Headphone Output |
|---|
| Power | 1x USB-C Input |
|---|
| Other | 1x USB-C Data Input/Output (Shared with Power Input)
1x 2.5 mm Sub-Mini Remote Input |
|---|
| Wireless | 5 GHz Wi-Fi 5 (802.11ac), Bluetooth 5.0 Video Output, Audio Output, Control |
|---|
| Satnav (GPS, GLONASS, etc.) | GPS
*Via Connected Smartphone |
|---|
Screen | Screen Size | 3" |
|---|
| Resolution | 1,840,000 Dot |
|---|

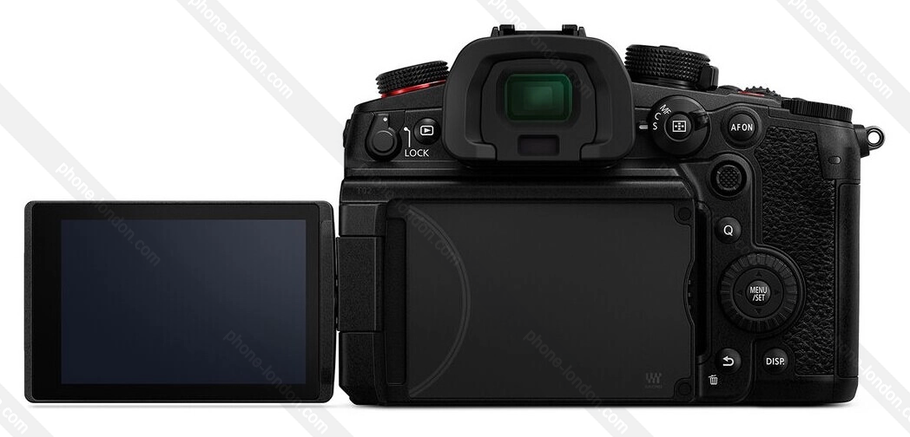

| Screen Type | Free-Angle Tilting Touchscreen LCD |
|---|
Viewfinder | Type | Electronic (OLED) |
|---|
| Resolution | 3,680,000 Dot |
|---|
| Eye Point | 21 mm |
|---|
| Coverage | 100% |
|---|
| Magnification | Approx. 0.76x |
|---|
| Diopter Adjustment | -4 to +3 |
|---|
Focus | Focusing | Auto and Manual Focus |
|---|
| AF Points | Photo, Video
Contrast Detection: 315 |
|---|
| Autofocus Sensitivity | -4 to +18 EV |
|---|
Flash | Max. Sync Speed | 1/250 Second |
|---|
| Flash Compensation | -3 to +3 EV (1/3 EV Steps) |
|---|
| Dedicated Flash System | TTL |
|---|
| External Connection | Shoe Mount |
|---|
General Information | Battery | 1x DMW-BLK22 Rechargeable Lithium-Ion, 7.2 VDC, 2200 mAh (Included)
• Approx. 350 Shots |
|---|
| Shoe Mount | 1x Hot Shoe |
|---|
| Tripod Mounting Thread | 1x 1/4"-20 Female (Bottom) |
|---|
| Material | Magnesium Alloy |
|---|
| Operating Conditions | 14 to 104°F / -10 to 40°C at 10 to 80% Humidity |
|---|
| WxHxD | 5.45 x 3.95 x 3.92" / 13.84 x 10.03 x 9.96 cm |
|---|
| Weight | 1.8 lb / 805 g (With Battery, Recording Media)
1.6 lb / 721 g (Body Only) |
|---|
Package Information | Package | 2.8 lb / 1.27 kg |
|---|
| Box Dimensions | 7.6 x 6.4 x 6.1" / 19.03 x 16.03 x 15.27 cm |
|---|

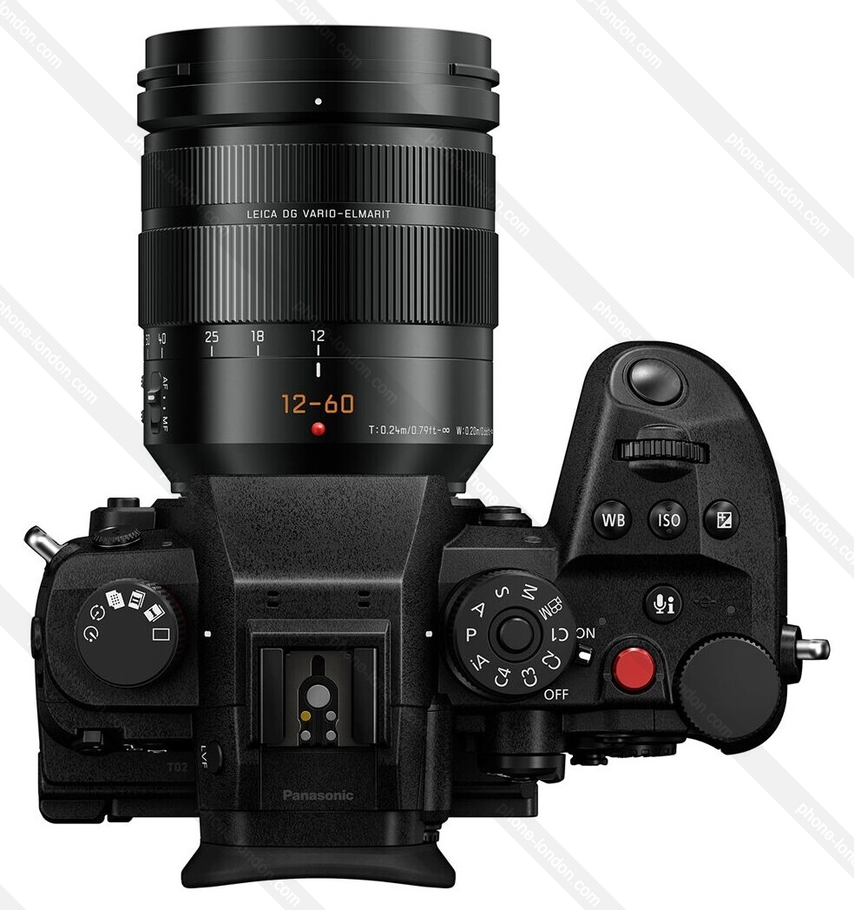

Key Specs | Focal | 12 to 60mm (35mm Equivalent: 24 to 120mm) |
|---|
| Max Aperture | f/2.8 to 4 |
|---|
| Lens Mount | Micro Four Thirds |
|---|
| Lens Format Coverage | Micro Four Thirds |
|---|
| Focus Type | Autofocus |
|---|
| Image Stabilization | Yes |
|---|
| Filter Size | 62 mm (Front) |
|---|
| Max. Aperture | f/2.8 to 4 |
|---|
| Min Aperture | f/22 |
|---|
| Lens Mount | Micro Four Thirds |
|---|
| Lens Format Coverage | Micro Four Thirds |
|---|
| Angle of View | 84° to 20° |
|---|
| Min. Focus Distance | 7.87" / 20 cm |
|---|
| Max. Magnification | 0.3x |
|---|
| Optical | 14 Elements in 12 Groups |
|---|
| Diaphragm Blades | 9, Rounded |
|---|
| Focus Type | Autofocus |
|---|
| Image Stabilization | Yes |
|---|
| Filter Size | 62 mm (Front) |
|---|
| Dimensions (ø x L) | 2.69 x 3.39" / 68.4 x 86 mm |
|---|
| Length at Max. Extension | 4.72" / 120 mm |
|---|
| Weight | 11.29 oz / 320 g |
|---|
Packaging Info | Package | 1.26 lb / 0.57 kg |
|---|
| Box Dimensions (LxWxH) | 7.1 x 5.4 x 4.5" / 17.78 x 13.52 x 11.27 cm |
|---|
|
