Key Specs | Lens Mount | Micro Four Thirds |
|---|
| Resolution | Actual: 26.52 Megapixel
Effective: 25.2 Megapixel (5776 x 4336) |
|---|
| Sensor | 17.3 x 13 mm (Four Thirds) BSI CMOS |
|---|
| Stabilisation | Sensor-Shift, 5-Axis |
|---|
| Video | 1x HDMI (Unspecified Signal) Output |
|---|
| Power | 1x USB-C Input |
|---|
| Other | 1x USB-C Data/Monitor/Tether/Video Input/Output (Shared with Power Input) |
|---|
| Wireless | 5 GHz Wi-Fi 5 (802.11ac), Bluetooth 5.0 Video Output, Audio Output, Control |
|---|

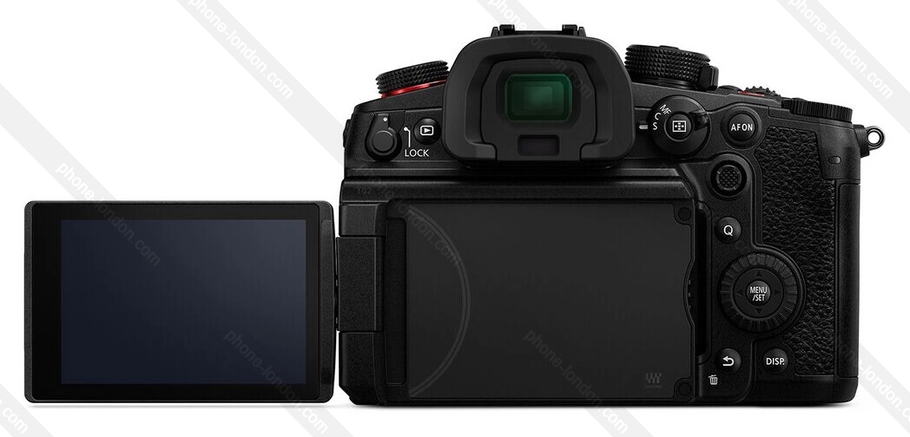

| Screen Type | Free-Angle Tilting Touchscreen LCD |
|---|
| Battery Type | 1x DMW-BLK22 Rechargeable Lithium-Ion, 7.2 VDC, 2200 mAh (Approx. 350 Shots) |
|---|

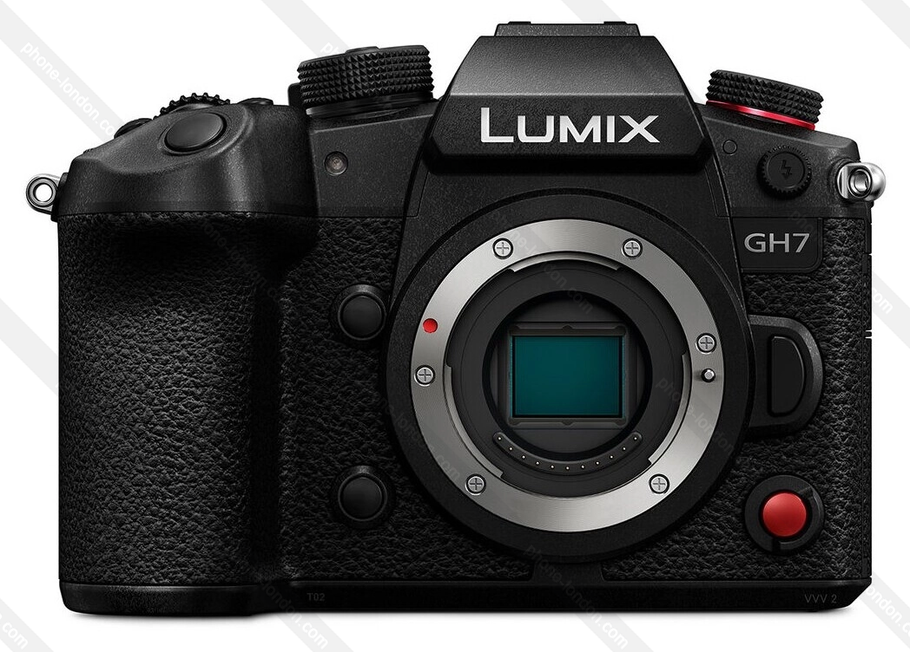

Image | Lens Mount | Micro Four Thirds |
|---|
| Sensor Resolution | Actual: 26.52 Megapixel
Effective: 25.2 Megapixel (5776 x 4336) |
|---|
| Image Sensor | 17.3 x 13 mm (Four Thirds) BSI CMOS |
|---|
| Sensor Crop (35mm Equivalent) | Crop Factor: 2x
*Additional Crop Occurs in Select Video Modes |
|---|
| Image Stabilization | Sensor-Shift, 5-Axis |
|---|
| Capture Type | Stills & Video |
|---|
Exposure | Shutter Type | Mechanical Focal Plane Shutter and Electronic Rolling Shutter |
|---|
| Bulb/Time Mode | Bulb Mode |
|---|
| Metering | Center-Weighted Average, Highlight Weighted, Multiple, Spot |
|---|
| Exposure | Aperture Priority, Auto, Manual, Program, Shutter Priority |
|---|
| Compensation | -5 to +5 EV (1/3 EV Steps) |
|---|
| Metering Range | 0 to 18 EV |
|---|
| Self Timer | 2/3/10-Second Delay |
|---|
Still Photography | Aspect Ratio | 1:1, 3:2, 4:3, 16:9 |
|---|
| Format | JPEG, Raw |
|---|
Video | Fast, Slow Motion | Yes |
|---|
| Gamma Curve | Panasonic V-Gamut, Panasonic V-Log |
|---|
| Built-In Microphone | Stereo |
|---|
| Audio | MOV: 2-Channel 24-Bit 48 kHz LPCM Audio
MP4: 2-Channel 16-Bit 48 kHz AAC Audio |
|---|
Connectivity | Video I/O | 1x HDMI (Unspecified Signal) Output |
|---|
| Power | 1x USB-C Input |
|---|
| Other I/O | 1x USB-C Data/Monitor/Tether/Video Input/Output (Shared with Power Input) |
|---|
| Wireless | 5 GHz Wi-Fi 5 (802.11ac), Bluetooth 5.0 Video Output, Audio Output, Control |
|---|
| Satnav (GPS, GLONASS, etc.) | GPS
*Via Connected Smartphone |
|---|
Screen | Screen Size | 3" |
|---|
| Resolution | 1,840,000 Dot |
|---|
| Display Type | Free-Angle Tilting Touchscreen LCD |
|---|
Viewfinder | Type | Built-In Electronic (OLED) |
|---|
| Resolution | 3,680,000 Dot |
|---|
| Eye Point | 21 mm |
|---|
| Coverage | 100% |
|---|
| Magnification | Approx. 0.76x |
|---|
| Diopter Adjustment | -4 to +3 |
|---|
Focus | Focusing | Auto and Manual Focus |
|---|
| AF Points | Photo, Video
Contrast Detection: 315 |
|---|
| Autofocus Sensitivity | -4 to +18 EV |
|---|
Flash | Max. Sync Speed | 1/250 Second |
|---|
| Flash Compensation | -3 to +3 EV (1/3 EV Steps) |
|---|
| Dedicated Flash System | TTL |
|---|
| External Connection | Shoe Mount |
|---|
Environmental | Operating Temperature | 14 to 104°F / -10 to 40°C |
|---|
| Operating Humidity | 10 to 80% |
|---|
General Information | Battery Type | 1x DMW-BLK22 Rechargeable Lithium-Ion, 7.2 VDC, 2200 mAh (Approx. 350 Shots) |
|---|
| Shoe Mount | 1x Hot Shoe |
|---|
| Tripod Mounting Thread | 1x 1/4"-20 Female (Bottom) |
|---|
| Material | Magnesium Alloy |
|---|
| WxHxD | 5.45 x 3.95 x 3.92" / 13.84 x 10.03 x 9.96 cm |
|---|
| Weight | 1.8 lb / 805 g (With Battery, Recording Media)
1.6 lb / 721 g (Body Only) |
|---|
|
